TRX680FA

THE ON-FARM POWERHOUSE

PATRIOT RED
OVERVIEW

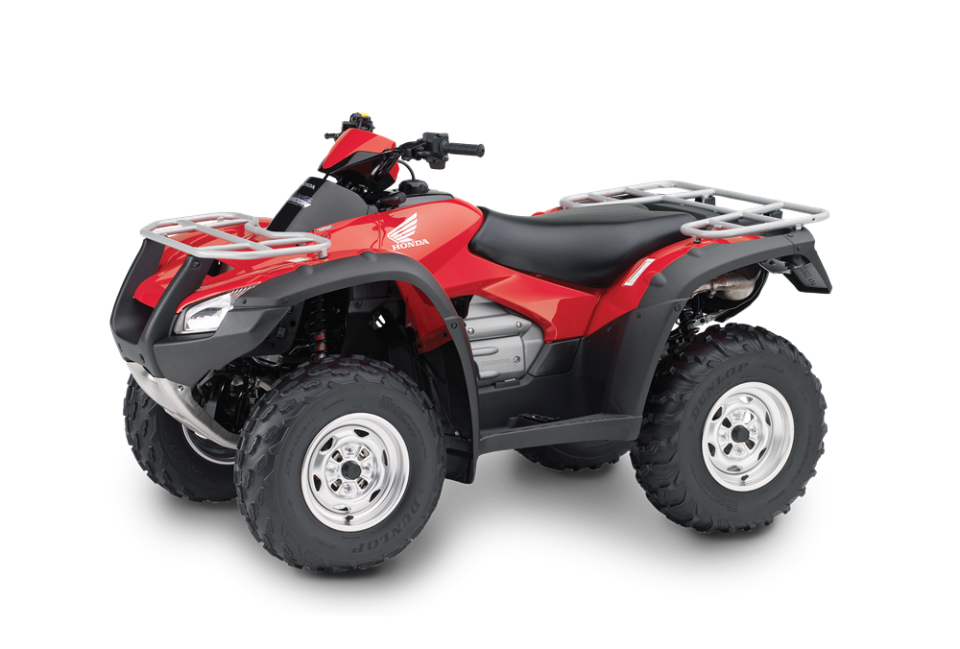

TRX680FA

An off-the-scales star performance puts the TRX680FA a cut above the rest. This ATV is one hardgoing beast when it comes to tackling to-do-lists. Feature-packed, the TRX680FA is really a Sport Utility Vehicle at heart, and style. Class-leading, it is the go-to machine for large trailer towing and pulling horse floats, thanks to its power, precision and ease.

The raw power comes from its 675cc 4-stroke, OHV liquid-cooled engine. The precision from the selectable 2WD/4WD. And the ease from the 3-speed automatic transmission with reverse. To top it all off it has a sleek SUV-like styling and riding feel. This is the biggest, most powerful quad in the Honda series; let your imagination run as wild as your surroundings.

BOOK A TEST RIDE

GALLERY

TRX680FA

WHY CHOOSE A HONDA

WHY CHOOSE A HONDA


For over 40 years Honda has been a fixture on farms around New Zealand. With a range of products designed for New Zealand conditions you can rest assured that no matter the task your Honda is up for it.

Simply click on one of the buttons below to hear real stories from real Honda customers or check out just some of the great benefits of using a Honda on farm in New Zealand.

CUSTOMER STORIES  HONDA BENEFITS

FEATURES

TAKE A CLOSER LOOK

/10

HONDA RIDER FINANCE

HONDA RIDER FINANCE


Honda proudly partners with UDC to offer a great range of finance options. Talk to your Honda dealer today to find the best finance solution for your needs. We can help finance you into your new Honda whether you are looking at a new ATV, Side by Side, Off-road Bike, Road Bike or Scooter.

FIND OUT MORE
SPECIFICATIONS

YOUR BIKE IN DETAIL

TRX680FA
Engine
Engine Type Liquid-cooled OHV longitudinally mounted single-cylinder 4 stroke
CC Rating 675cc
Bore and Stroke 102mm x 82mm
Ignition Full transistorised with electronic advance
Carburetion Electronic fuel injection (PGM-FI) 40mm throttle body
Compression Ratio 9.2:1
Transmission
Starter Electric with auxiliary recoil standard
Final Drive Direct front and rear drive shafts w/ Translok® and locking front differential
Transmission Automatic with hydraulic torque converter, 3-speed with reverse and electronic control
Wheels, Suspension & Brakes
Suspension Front Independent double-wishbone; 175mm of travel
Suspension Rear Independent double-wishbone; 203mm of travel
Brakes Front Dual hydraulic disc; 180mm disc
Brakes Rear Single hydraulic mechanical disc
Tyres Front 25 x 8 R12
Tyres Rear 25 x 10 R12
Dimensions & Weight
Wheelbase 1289mm
Seat Height 875mm
GroundClearance 234mm
Kerb Weight 291kg
Fuel Capacity 17 litres (including 4.1 litre reserve)
Dimensions 2113mm(L) x 1189mm(W) x 1207mm(H)
Carrier Capacity 30kg Front rack - 40kg Rear rack
Towing Capacity 385kg
