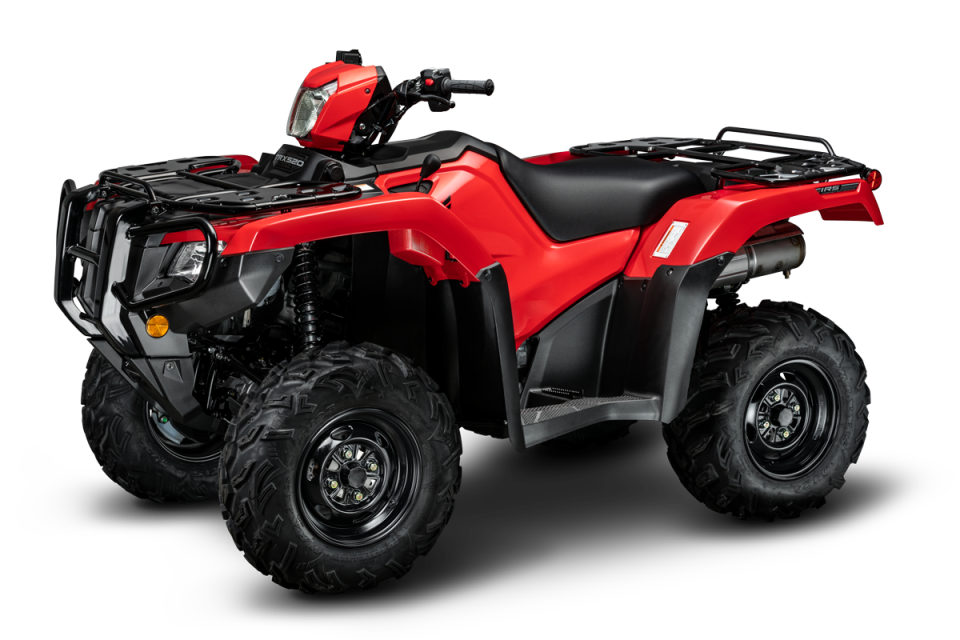

TRX520FA6

MEET THE NEW BOSS!

PATRIOT RED
OVERVIEW

TRX520FA6

The new boss is here. The TRX520FA6 is Honda’s flagship ATV and with the new 518cc engine it now has even more power and torque to perform all the big tasks on farm. The exiting news though is a revised transmission which monitors engine rpm in real time to offer smooth seamless shifting in auto mode.

The automatic dual-clutch transmission (DCT) features both automatic and manual modes, a hi-low range sub transmission, and a new reverse switch to simplify the transition into and out of reverse. The improved engine RPM sensing system offers smoother and more seamless shifting between gears and there’s also an override capability to allow manual shifting even when in automatic mode - giving the rider a new level of control and making it possible to downshift on corner entry or upshift manually.

In the looks department, the FA6 sports a redesigned grill and front bumper for a more aggressive, stylised look, and it also comes with a handy new utility box and new carry rack design. New guards extend the full length of the lower suspension arms for full coverage of the driveshaft and outboard CV joints for even more under body protection. With a front diff lock and massive 600kg towing capacity this bike is made to tackle the big jobs

*For Fieldays online get $600 Honda Dollars with every new TRX520FA6. Ts & Cs Apply

BOOK A TEST RIDE

GALLERY

TRX520FA6

SPECIFICATIONS

YOUR BIKE IN DETAIL

TRX520FA6
Engine
Engine Type Liquid-cooled OHV  longitudinally mounted single-cylinder, 4 stroke
CC Rating 518cc
Bore and Stroke 96.0mm x 71.5mm
Ignition Full-transistorised with electronic advance
Carburetion Programmed Fuel Injection (PGM-FI) 36mm throttle body
Compression Ratio 9.5:1
Transmission
Starter Electric with auxiliary recoil standard
Final Drive Direct front and rear driveshafts w/ TraxLok® and locking front differential
Transmission Dual Clutch Automatic; 5-speed with reverse and High/Low
Wheels, Suspension & Brakes
Suspension Front Independent double wishbone - 185mm of travel
Suspension Rear Independent rear suspension - dual arm - 215mm of travel
Brakes Front Dual hydraulic - 190mm discs
Brakes Rear Single hydraulic - 170mm disc
Tyres Front 25 x 8 - 12
Tyres Rear 25 x 10 - 12
Dimensions & Weight
Wheelbase 1,294mm
Seat Height 922mm
GroundClearance 247mm
Kerb Weight 331kg
Fuel Capacity 14.7litres incl 4.9litres reserve
Dimensions 2185mm(L) x 1205mm(W) x 1237mm(H)
Carrier Capacity 45kg Front rack – 85kg Rear rack
Towing Capacity 600kg
FEATURES

TAKE A CLOSER LOOK

/10

TEST RIDE A TRX520FA6

TEST RIDE A TRX520FA6


Had enough reading and want to get riding? Book a test ride using the form below to experience a Honda for yourself. Just select your local dealer, fill in your details and we'll have you on the road in no time.
