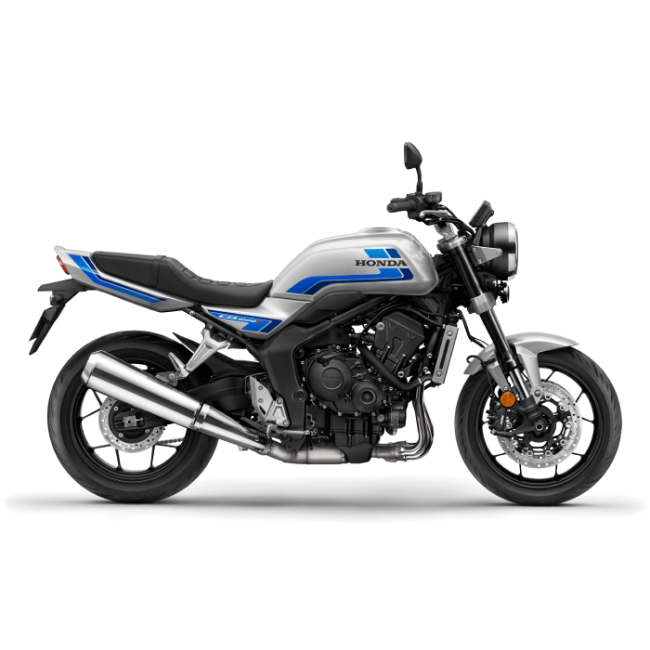

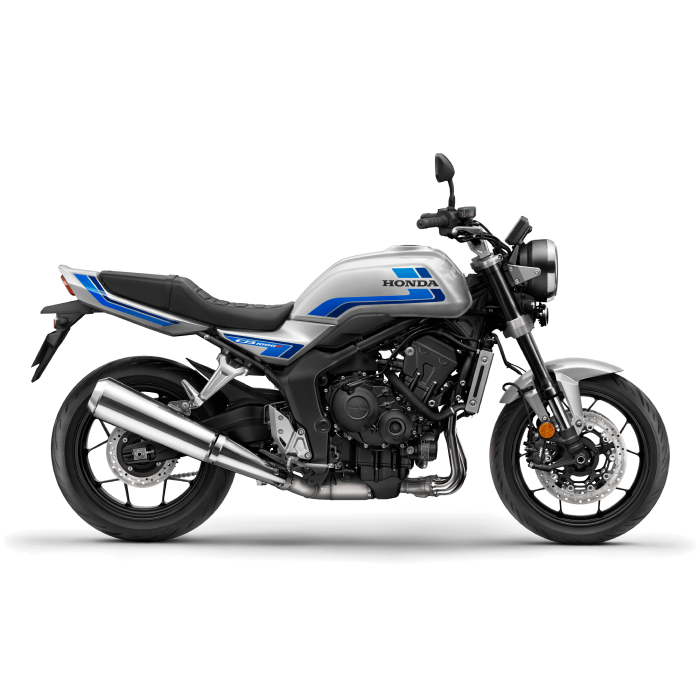

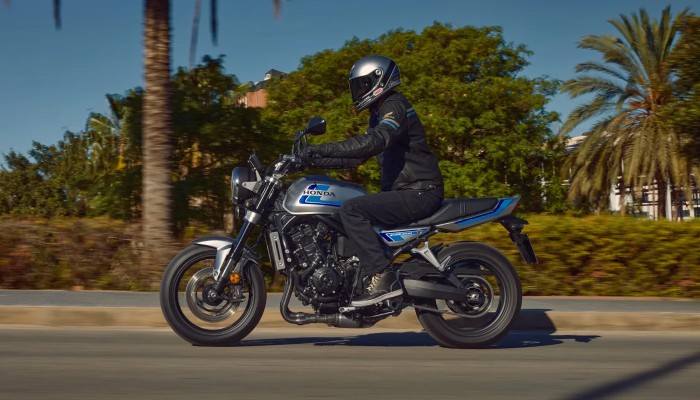

CB1000F

Coming this year!

Inspired by the iconic 1979 CB750F, now reborn with contemporary muscle
and tech. Explore the unparalleled riding feeling and unique sound of the CB1000F.

Not just a simple comeback. This is a new CB with original soul and a modern twist. A robust tank, timeless round headlight and simple performance-focused muffler capture the classic feel while pushing boldly ahead. An easy upright ride and low seat make every day effortless. Yet with smart tech, cornering ABS and a punchy four-cylinder engine, it’s always ready to thrill.

Specifications

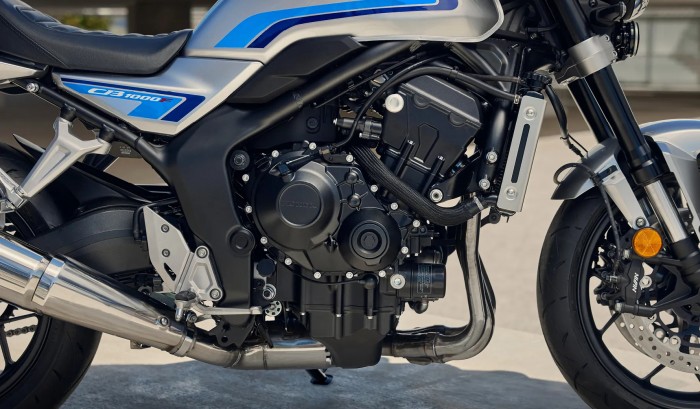

Engine TypeLiquid-cooled, DOHC inline 4-cylinder
Engine Displacement1000 cc
Bore and Stroke76mm x 55.1mm
Compression Ratio11.7:1
Fuel SystemPGM-FI Fuel Injection
Cylinders4
Valves16
Max Power91kW
Max Torque103 Nm
Oil Capacity3.5 litres
StarterE-Starter
Gearbox6-speed
Final DriveChain
ClutchWet multiplate, assisted slipper
Wheels Front17M/C x MT3.50
Wheels Rear17M/C x MT5.50
Suspension Front41 mm Showa USD SFF-BP Fork
Front Wheel Travel130 mm
Suspension RearSeparate pressurized single-tube type cushion unit Pro Link
Rear Wheel Travel140 mm
Brakes FrontRadial mounted 4 piston Nissin calipers,twin 310mm floating discs
Brakes RearNissin single caliper, single 240 mm disc
Tyres Size Front120/70ZR17M/C (58W)
Tyres Size Rear180/55ZR17M/C (73W)
Rake Caster Angle25 degrees
Wheelbase1455 mm
Ground Clearance135 mm
Seat Height795 mm
Trail98 mm
Kerb Weight214 kg
Fuel Capacity16 litres
Length2135 mm
Width835 mm
Height1125 mm
Frame TypeDiamond Steel Frame
Minimum Turning Radius2.8 m

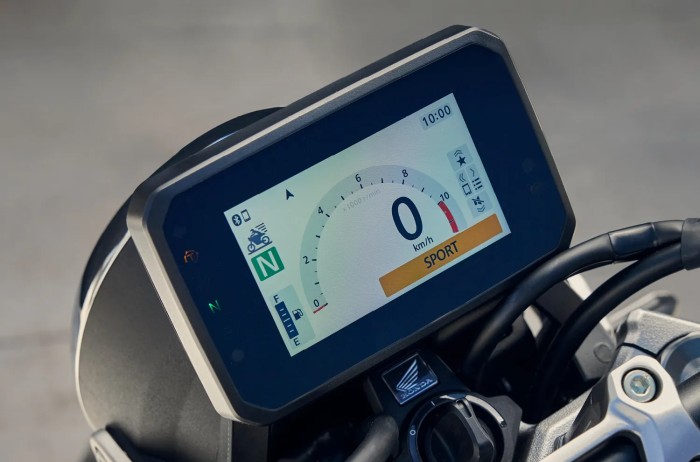

Instruments5 inch TFT Panel Multi information display
Riding ModesStandard, Rain, Sport and 2x User
HeadlightLED
Day Time Running LightsYes
Tail LightLED
USB TypeType-C
Security SystemHISS
Emergency Stop SignalYes
LAMS ApprovedNo
